REVERSIBLE COMPACTOR MVH-308DSY
MVH-308DSY

Reversible Compactor MVH-308DSY

  • MVH-308DSY
  • MVH-308DSY
  • MVH-308DSY
  • MVH-308DSY
  • MVH-308DSY
  • MVH-308DSY

Reversible Compactor with Electric Start

●Smooth forward and reverse drivability.
●VAS handle to reduce hand-arm vibration : patented.
●Forward/Reverse control lever : patented.
●Integrated vibrating plate.

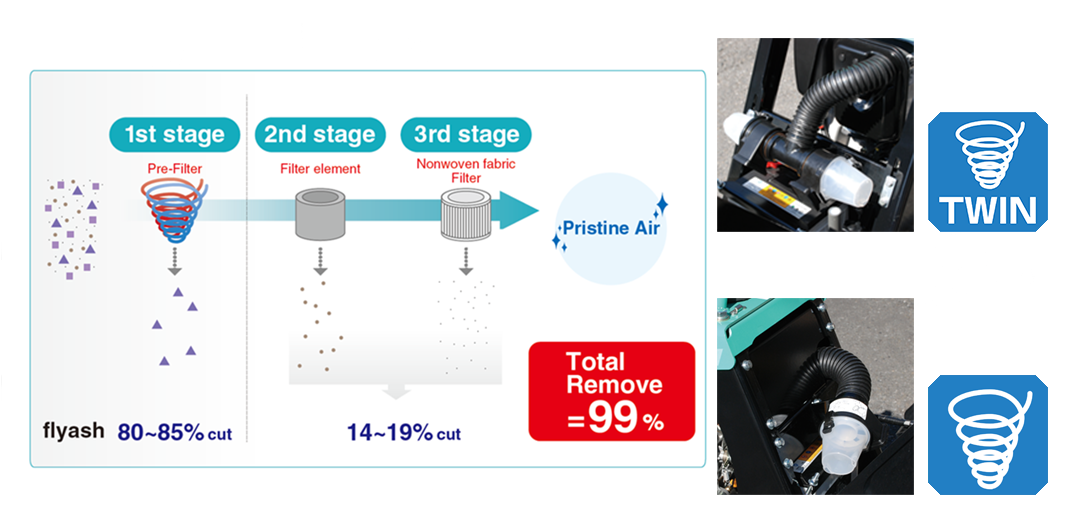

●Cyclone air filter to extend engine life and reduce maintenance.
●Tacho hour meter for checking engine R.P.M. and operating time.
●Electric Start for quick and smooth starting.
●Single-point lifting hooks for easy loading and unloading.
●Extension plate for more efficient compaction(option).

SPEC

SPEC
compaction sensor "Compas II" -
integrated vibrating plate
monocoque structure
electric start
cyclone pre cleaner
tacho hour cleaner
self locking system
lifting hook
VAS handle : Patented
forward/reverse control lever : Patented
water tank -
cart -
extension plate 〇(75mm, 150mm, option)
dimensions
(mm)
A 1,540
B 445(595 w/ extension)
C 1,030
plate size
(mm)
D 860
B 445(595 w/ extension)
weight(kg) 341
vibrating frequency(Hz/v.p.m) 73(4,400)
centrifugal force(max)(kN/kgf) 45.0(4,600)
max.traveling speed(m/min) 27
power source kW(PS) model L70N
brand Yanmar
max.output 4.9kW/6.7PS

FEATURES

  • FEATURES 01 01 ICONS
