CONCRETE VIBRATOR
FXS-30B

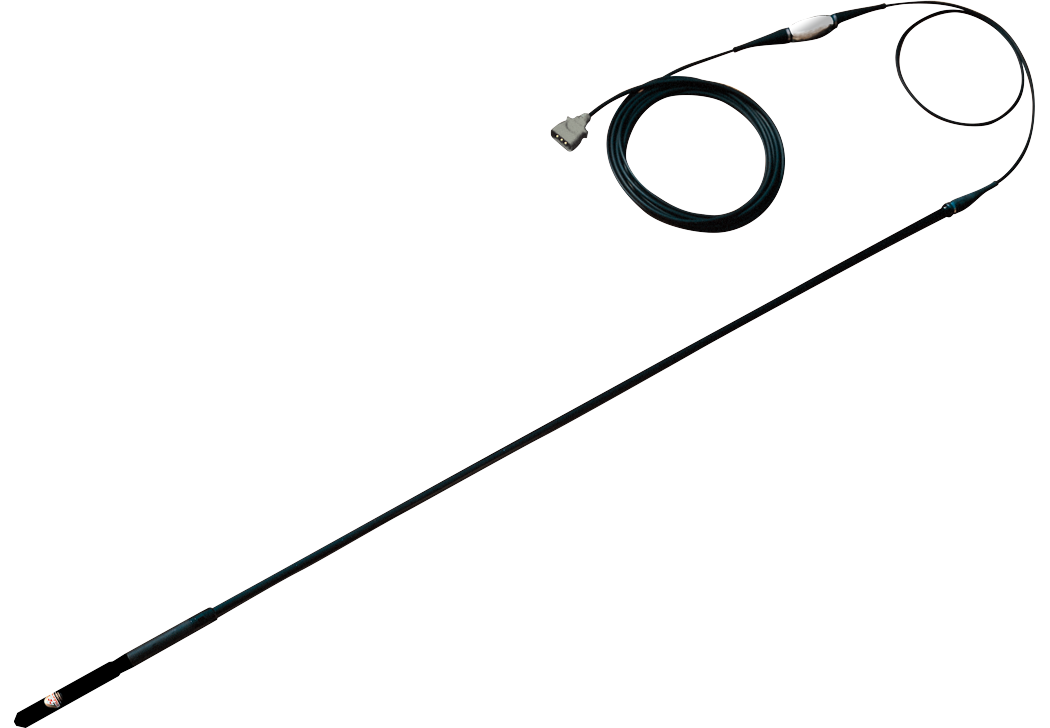

High Frequency Concrete Vibrator FXS-30B
High Frequency Concrete Vibrator Steel Type
● Use of special lightweight steel pipe makes it easy-to-handle.
● No tangling with rebar even when pouring concrete into fine structural frameworks of rebar.
● Finishes can be improved since the vibrator can be inserted along slopes (gradients).
● Special tubes contain vibration absorbing rubber to reduce vibrations transmitted to the hands.
SPEC
| special lightweight steel pipe | 〇 | |
|---|---|---|
| powerful high-performance motor | 〇 | |
| vib.head and steel pipe | (D)(Φ) | 32 |
| (B)(m) | 395 | |
| (A)(mm) | 2,628 | |
| (F)(mm) | 668 | |
| cable(C)(m) | 15 | |
| weight(kg) | 12.0 | |
| voltage(V) | 48(three phase) | |
| cycle(Hz) | 200/240 | |
| amperage(A) | 4 | |
| amplitude(mm) | 1.8 | |
| vibration Hz(v.p.m.) | 200/240(12,000/14,400) | |
